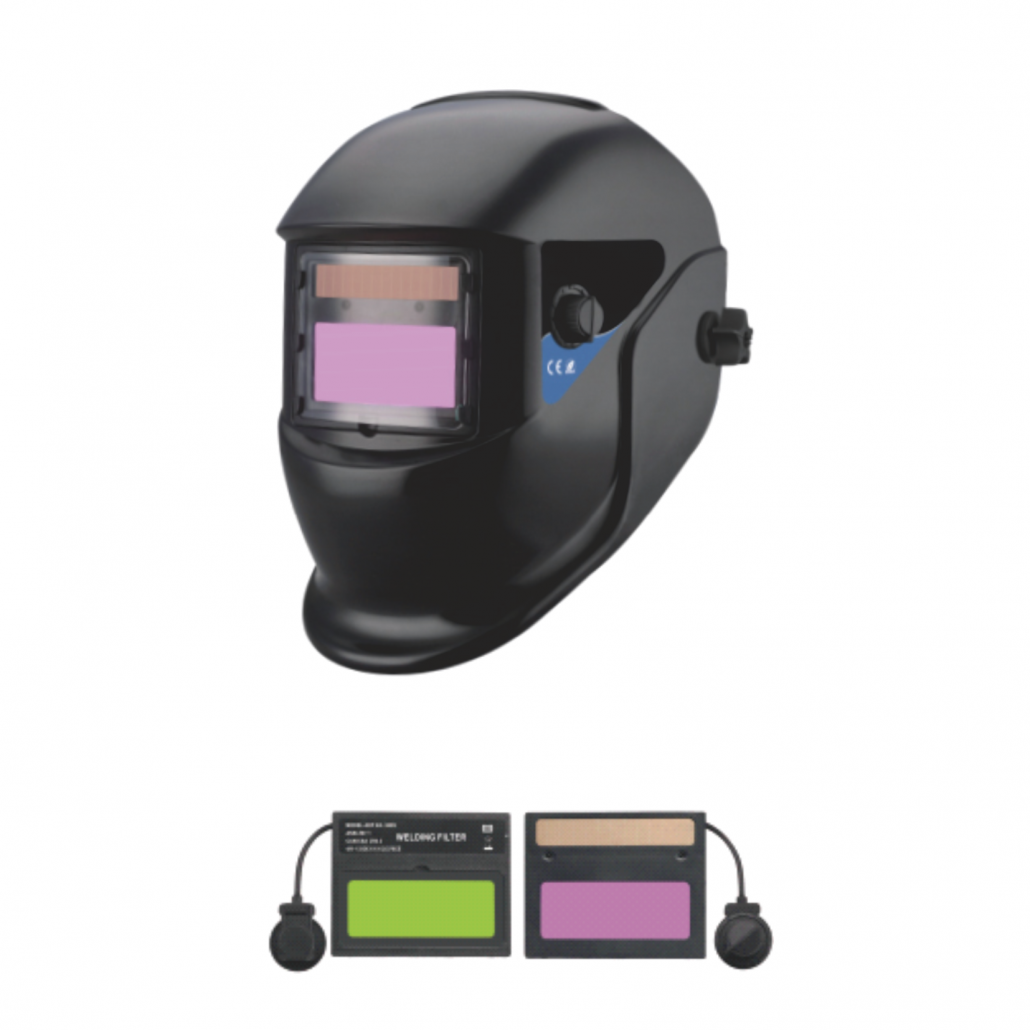

AUTO DARKENING WELDING HELMET • ADF GX-380S
|
Technical Data |
|
| Viewing Area | 92*42mm |
| Cartridge Size | 110*90*10mm |
| Arc Sensor | 2 |
| Light State | DIN 4 |
| Dark State | Variable shade, 9 ~13 |
| Shade Control | Automatic |
| Power On/Off | Fully Automatic |
| Sensitivity Control | Automatic |
| UV/IR Protection | DIN 16 |
| Power Supply | Solar cells. Re-chargeable battery No battery change required |
| Switching Time | 1/25000S,from Light to Dark; Dark to Light,0.1-1.0S Auto |
| Low Amperage TIG | ≥20amps(DC), ≥20amps(AC) |
| Grinding Function | YES |
| Low Volume Alarm | NO |
| ADF self-check | NO |
| Operating Tep | -5℃~+55℃ |
| Storing Tep | -20℃~+70℃ |

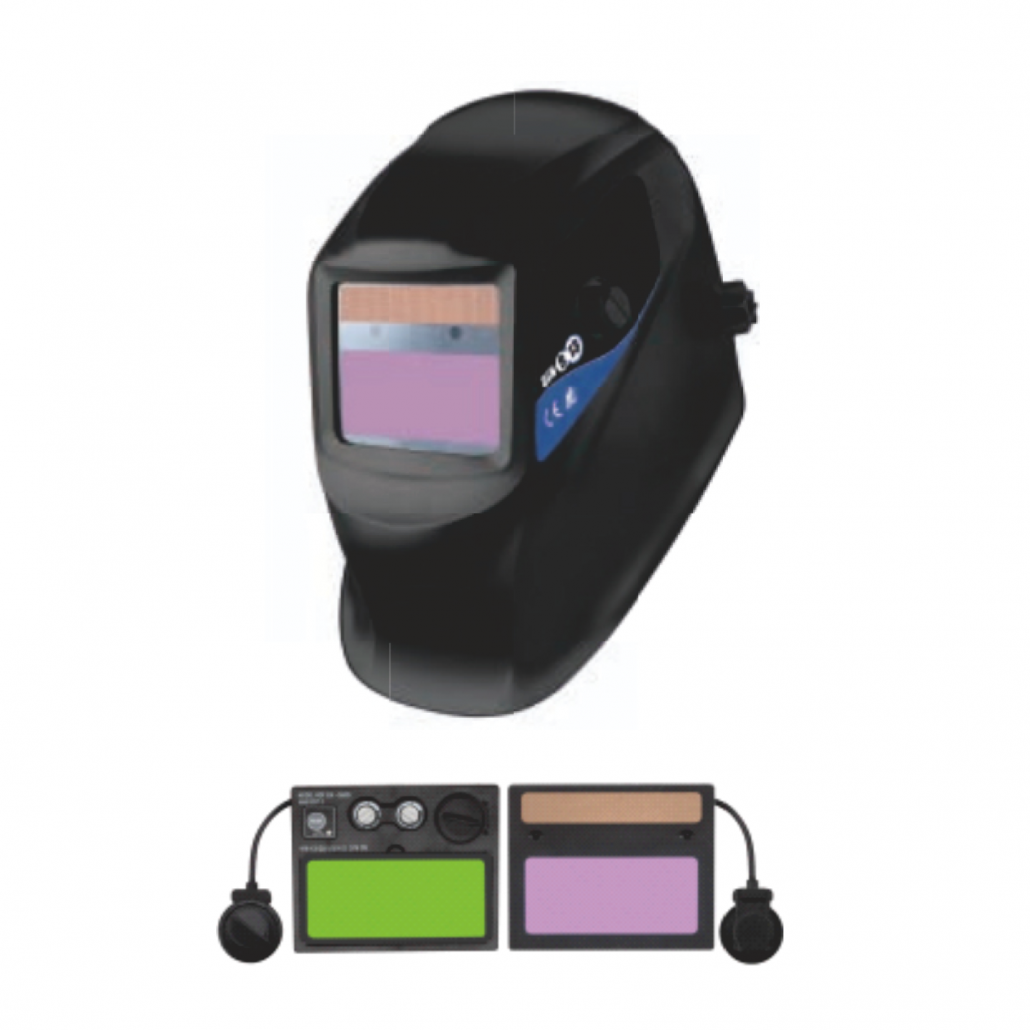

AUTO DARKENING WELDING HELMET • ADF GX-550S
|
Technical Data |
|
| Optical Class | 1/1/1/2 |
| Viewing Area | 92*42mm |
| Cartridge Size | 110*90*10mm |
| Arc Sensor | 2 |
| Light State | DIN 4 |
| Dark State | Variable shade, 9 ~13 |
| Shade Control | External,Variable |
| Power On/Off | Fully Automatic |
| Sensitivity Control | Low-High, by infinitely dial knob |
| UV/IR Protection | DIN 16 |
| Power Supply | Solar cell+1 Replaceable CR2032 Lithium Battery |
| Switching Time | 1/25000S,from Light to Dark; Dark to Light 0.1-1.0S by infinitely dial knob |
| Low Amperage TIG | ≥10amps(DC),≥10amps(AC) |
| Grinding Function | YES |
| Low Volume Alarm | YES |
| ADF self-check | YES |
| Operating Tep | -5℃~+55℃ |
| Storing Tep | -20℃~+70℃ |

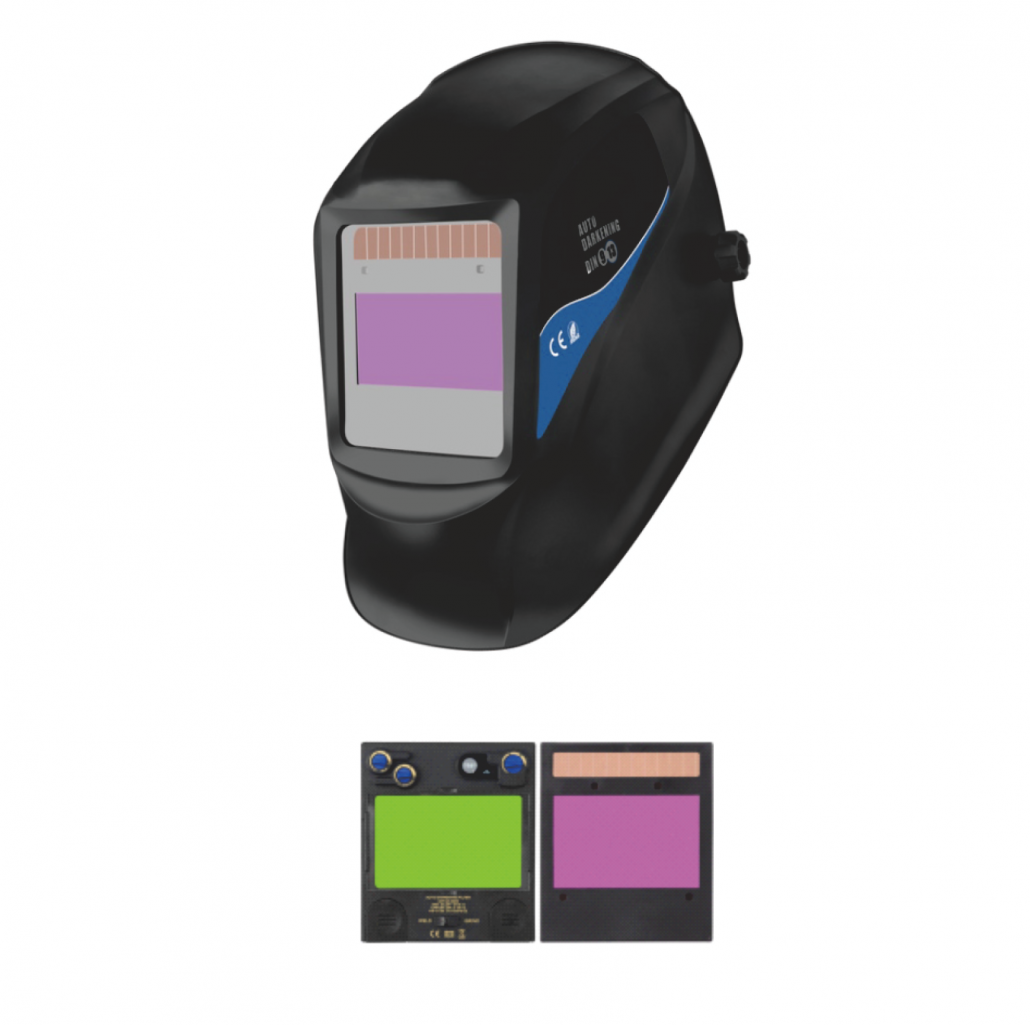

AUTO DARKENING WELDING HELMET • ADF GX-950S
|
Technical Data |
|
| Optical Class | 1/1/1/2 |
| Viewing Area | 98*62mm |
| Cartridge Size | 133*115*10mm |
| Arc Sensor | 4 |
| Light State | DIN 4 |
| Dark State | Variable shade, 9 ~13 |
| Shade Control | Internal,Variable |
| Power On/Off | Fully Automatic |
| Sensitivity Control | Low-High, by infinitely dial knob |
| UV/IR Protection | DIN 16 |
| Power Supply | Solar cell. Battery change required 2*CR2450 lithium battery |
| Switching Time | 1/30000S, from Light to Dark
Dark to Light:0.1S~1.0S |
| Low Amperage TIG | ≥5amps(DC),≥5amps(AC) |
| Grinding Function | YES |
| Low Volume Alarm | YES |
| ADF self-check | YES |
| Operating Tep | -5℃~+55℃ |
| Storing Tep | -20℃~+70℃ |
